主要特性和功能
- 光和電設計上的 50 MBaud 至 32 GBaud 數據速率范圍（連續）
- 提高符合標準的 NRZ 和 PAM-4 數據信號時鐘恢復（CR）

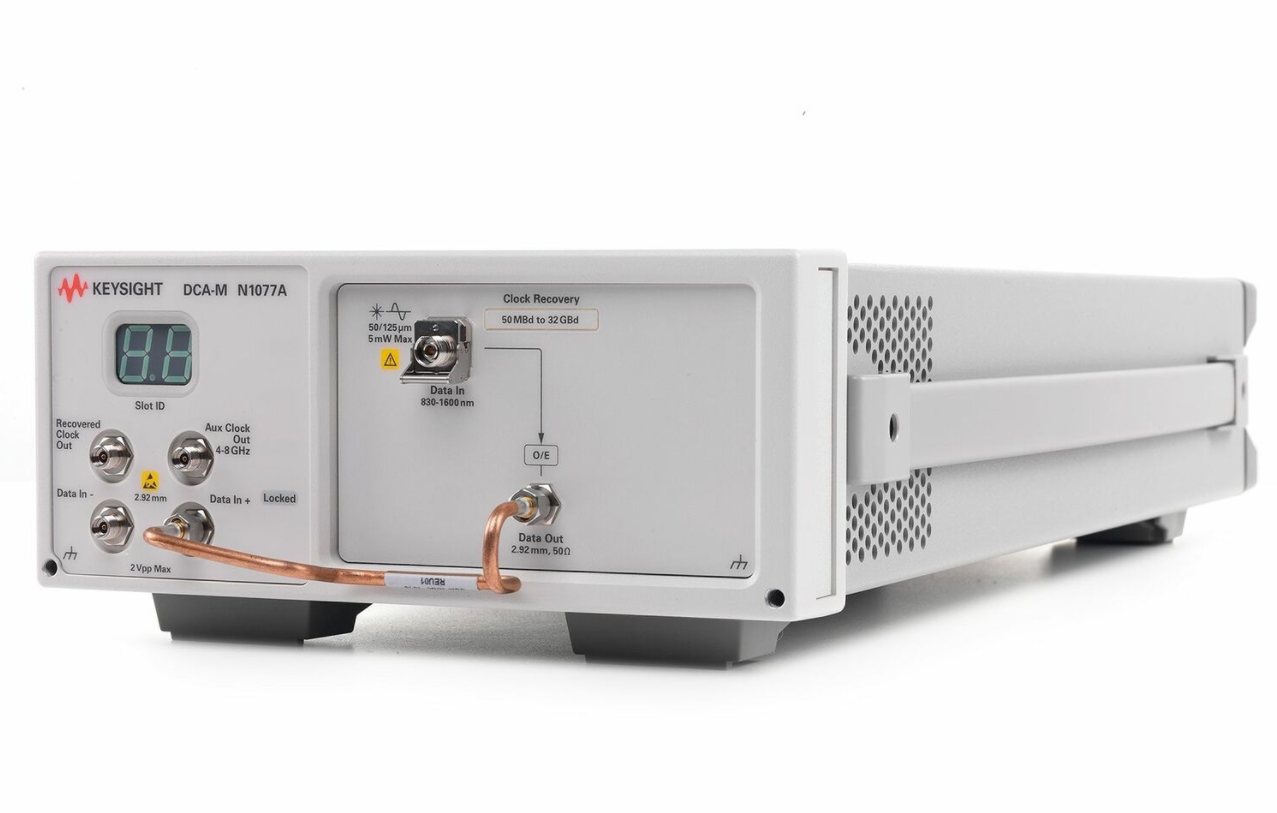

- 利用集成的放大光電（O/E）轉換器構造靈活、緊湊和高靈敏度的時鐘恢復設計
- 利用集成的分路器和主體光耦合器（選件 SMS）獲得最佳的易用性
| Advanced Features | |||
| N1077A-JSA | Jitter Spectrum Analysis and Clock Recovery Emulation | ||
| Calibration Documentation | |||
| N1077A-C0C | Certificate of Calibration | ||
| N1077A-UK6 | Commercial Calibration Certificate with Test Data | ||
| Optical Splitter | |||

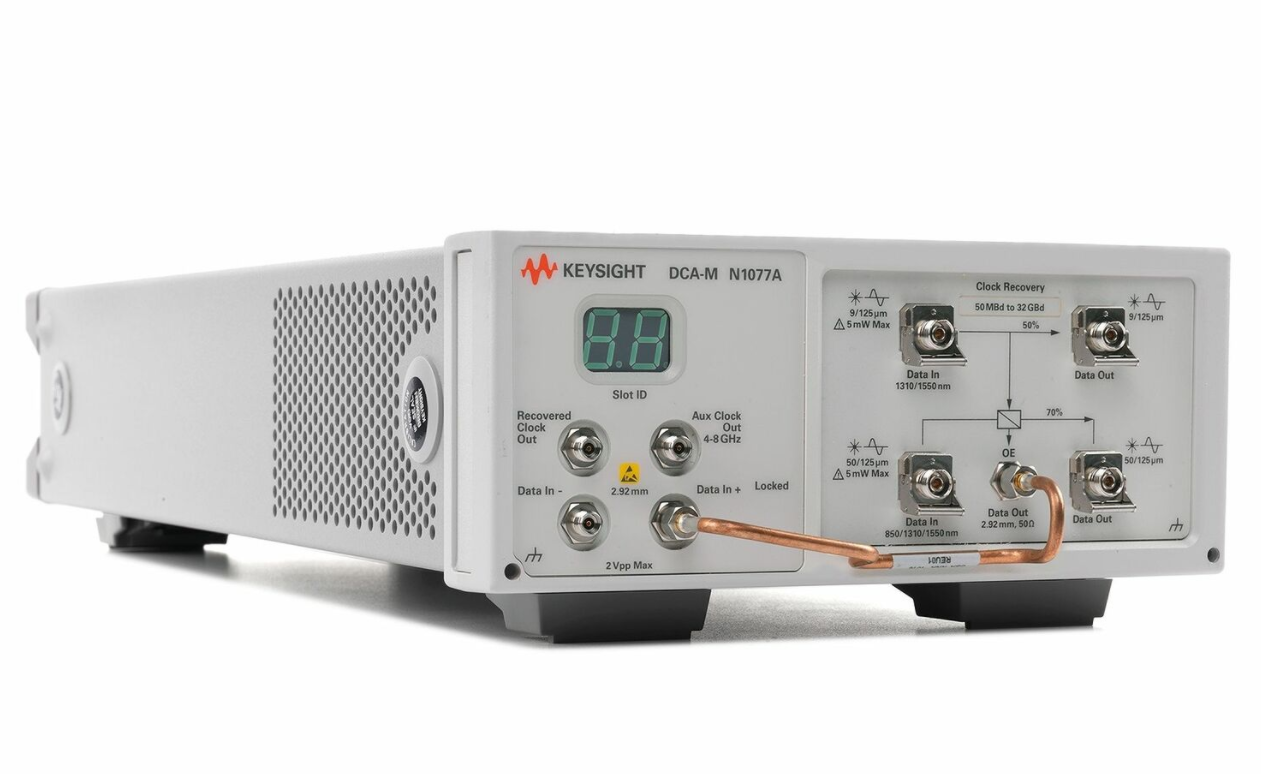

| N1077A-SMS | Internal Single-Mode (9/125 um) and Multimode (50/125um) Splitter | ||
| N1077A-SXT | External Splitter (supplied by user) | ||
| Signaling Rate | |||
| N1077A-232 | Supported input rates: 50 MBd to 32 GBd | ||
| N1077A-216 | Supported input rates: 50 MBd to 16 GBd | ||
| Accessories | |||
| N1077A-1CM | Single DCA-M Rack Mount Kit (reorder N1027A-RM1) | ||
| N1077A-1CN | Dual DCA-M side by side rack mount kit (reorder N1027A-RM2) | ||
| N1077A-CR1 | Clock Recovery Phase Matching Kit for N1077A Optical (reorder N1027A-77A) | ||
| N1077A-EQ6 | Equalizer, 2.92mm (m) to 2.92mm (f), 6dB (reorder N1027A-EQ6) | ||
| N1077A-EQ9 | Equalizer, 2.92mm (m) to 2.92mm (f), 9dB (reorder N1027A-EQ9) | ||
